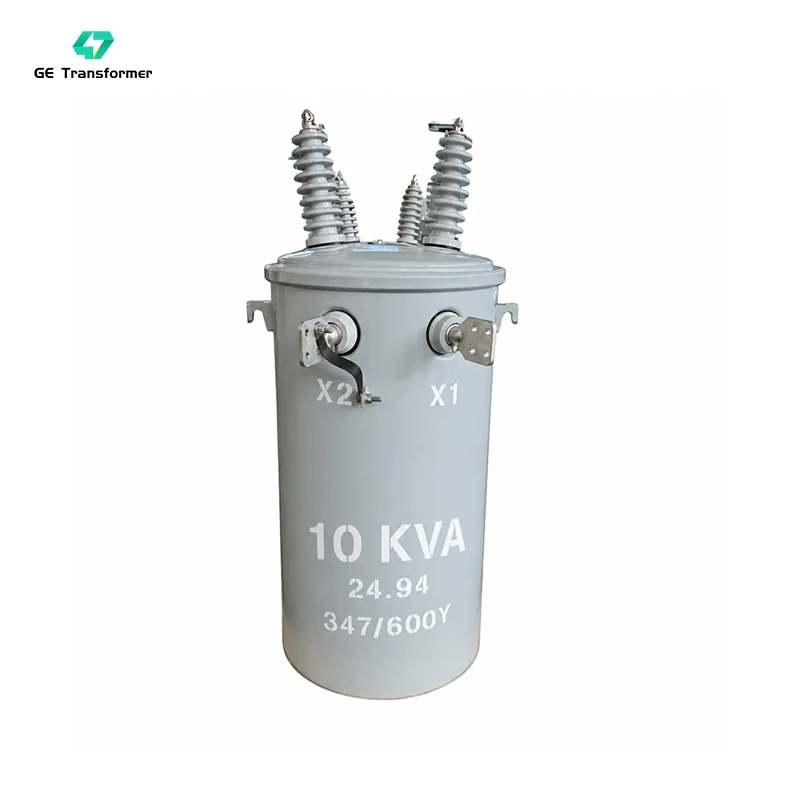

10 kva pole mounted transformer
Power Rating: 10 kVA
Primary Voltage: 7.2 / 7.62 / 13.2 / 13.8 / 14.4 / 22.9 / 24.9 / 33 kV, or
others
Secondary Voltage: 120/240 V, 220/127 V, 380/220 V, 240/480 V, 347/600 Y, 277 V, 347 V
Connection type: Ii0/Ii6
Phase: Single-phase, 60 Hz
Cooling Type: ONAN (Oil Natural Air Natural)
Winding material: Copper/Aluminum
BIL: 30-150kV
Standards Compliance: IEC, ANSI C57.12, IEEE, CSA C2.1, DOE efficiency
Enclosure: Tamper-proof, Hermetically Sealed Tank, IP54/IP55
Applications: Utility distribution networks • Residential communities • Rural electrification projects • Agricultural facilities and irrigation systems • Commercial buildings • Public infrastructure • Telecommunications facilities • Street lighting systems • Construction and infrastructure development projects
Min. order quantity: ≧ 1 set
Factory Services: OEM, ODM, Customized Voltage, Capacity, Enclosures, and Accessories
Packaging Details: International wooden cases or according to the actual transport needs
Delivery time: Generally, it is 20-30 days. It is according to the quantity.
Description
The GE Transformer 10 KVA Pole Mounted Transformer is a reliable and energy-efficient single-phase distribution transformer designed for utility, residential, agricultural, and light commercial power distribution systems. Engineered for overhead network applications, it delivers stable voltage regulation, dependable performance, and long-term operational reliability in a wide range of environmental conditions.
Manufactured with a high-quality silicon steel core and premium copper or aluminum windings, this 75 KVA pole mounted transformer minimizes energy losses while maximizing efficiency. Its durable, weather-resistant steel tank and advanced insulation system provide excellent protection against moisture, corrosion, and harsh outdoor conditions, ensuring a long service life with minimal maintenance.
Available in a variety of primary and secondary voltage configurations, including 13.2 kV to 120/240 V, the transformer can be customized to meet specific utility and project requirements. The ONAN cooling system and integrated voltage adjustment capabilities help maintain consistent performance and power quality under varying load conditions.
Benefits:
High energy efficiency with reduced operating costs
Reliable voltage regulation and stable power delivery
Durable outdoor construction for long service life
Low maintenance requirements and excellent thermal performance
Flexible voltage options and customization support
Why Choose GE Transformer?
GE Transformer combines advanced manufacturing technology, strict quality control, and international standard compliance to deliver dependable distribution transformer solutions. Our 75 KVA Pole Mounted Transformer is designed to provide efficient, safe, and cost-effective power distribution, making it an ideal choice for utility companies, rural electrification projects, and infrastructure developments worldwide.
10 KVA pole mounted transformer Technical Specifications
| No. | Item | Specification |
| 1 | Rated Power | 10 kVA |
| 2 | Number of Phases | Single-phase |
| 3 | Frequency | 50 Hz / 60 Hz (customizable) |
| 4 | High Voltage (HV) | 7.2 / 7.62 / 13.2 / 13.8 / 14.4 / 22.9 / 24.9 / 33 kV, or others |
| 5 | Low Voltage (LV) | 120/240 V, 220/127 V, 380/220 V, 240/480 V, 347/600 Y, 277 V, 347/600Y, or others |
| 7 | Connection Group | Ii0/Ii6 |
| 8 | Winding Material | Copper/Aluminum |
| 9 | Cooling Type | ONAN / KNAN |
| 10 | Rated Impedance Voltage | 2%～4% or customized |
| 11 | Temperature Rise | 55-65°C |
| 12 | Altitude | ≤1,000m or Customized |
| 13 | Ambient Temperature | -40°C to +45°C (altitude ≤ 1000m; high altitude versions available) |
| 14 | Protection Level | Outdoor, Hermetically Sealed Tank, IP54/IP55 |
| 15 | Noise Level | ≤ 50 dB (measured at 1 meter) |
| 16 | Installation Type | Pole-Mounted (Horizontal or Vertical mounting) |
| 17 | Accessories | HV Bushing, LV Bushing, Nameplate, Support lug, Tap changer, tank ground, Pressure relief, Cover clamp, Lift lug, Copper strip |
| 18 | Applications | Utility distribution networks • Residential communities • Rural electrification projects • Agricultural facilities and irrigation systems • Commercial buildings • Public infrastructure • Telecommunications facilities • Street lighting systems • Construction and infrastructure development projects |
| 19 | Applicable Standards | IEC60076，ANSI C57, IEEE, CSA |
| 20 | Min. order quantity | ≧ 1 set |
| 21 | Warranty | Typically one year, depending on the client’s specific needs |
| 22 | Delivery Time | Generally, it is 20-30 days. It is according to the quantity. |
10 KVA pole mounted transformer Accessories
The GE Transformer 10 KVA Pole Mounted Transformer can be equipped with a range of high-quality accessories to enhance operational safety, reliability, and ease of maintenance. Standard components are designed to ensure dependable performance, while optional accessories are available to meet specific utility and project requirements
Standard Accessories
- High Voltage Bushings
- Low Voltage Bushings
- Stainless Steel Nameplate
- Pole Mounting Lugs
- Tank Ground Connector
- Pressure Relief Device
- Lifting Lugs
- Cover Clamps
Optional Accessories
- Surge Arrester
- Current-Limiting Fuse
- Protective Link
- H2 Terminal
- Off-Circuit Tap Changer
Packaging and Shipping
FAQ
1.What are the common voltage ratings for a 10 KVA pole mounted transformer?
Common primary voltages include 11 kV, 13.2 kV, 13.8 kV, and 24.94 kV, while secondary voltages typically include 120/240 V, 240/480 V, and other customized configurations. GE Transformer can provide customized voltage ratings based on project requirements.
2.What applications is a 10 KVA pole mounted transformer suitable for?
This transformer is commonly used in utility distribution networks, residential communities, rural electrification projects, agricultural facilities, commercial buildings, telecommunications infrastructure, and public utility systems.
3.Can the transformer be customized?
Yes. GE Transformer offers customization options including voltage ratings, impedance, frequency, tap changer configurations, insulation levels, accessories, and painting systems to meet specific utility and project needs.
4.Why choose GE Transformer as your pole mounted transformer manufacturer?
GE Transformer provides high-quality distribution transformers with strict quality control, international standard compliance, customizable designs, competitive pricing, and global export experience. Our solutions are designed to deliver reliable performance, long service life, and cost-effective operation for utility and infrastructure projects worldwide.
5.What factory tests are performed before shipment?
Each transformer undergoes comprehensive routine testing before delivery, including ratio testing, winding resistance testing, insulation resistance testing, impedance measurement, polarity verification, and dielectric testing to ensure compliance with applicable standards and customer specifications.
6.What materials are used in a 10 KVA pole mounted transformer?
GE Transformer 10 KVA pole mounted transformers are manufactured using high-grade silicon steel cores and premium copper or aluminum windings. These materials help improve energy efficiency, reduce losses, and ensure long-term operational reliability.
